The CD 1.10 offers you the convenience of playing your digital audio library comfortably, while your CD collection doesn't fall dusty, all with uncompromising electron tube audio output and modern design.
The high-quality processing of digital files is handled independently for each channel by a high-end 24/192 converter, which has brought even better separation of channels and increased signal-to-noise ratio.
The basis of the CD player is a first-class and quiet CD drive with bearing drive to eject discs.
Clear matrix display together with ergonomic control will contribute to your well-being and sound recitation experience.
The Canor CD 1.10 has a digital coaxial, optical and USB input.

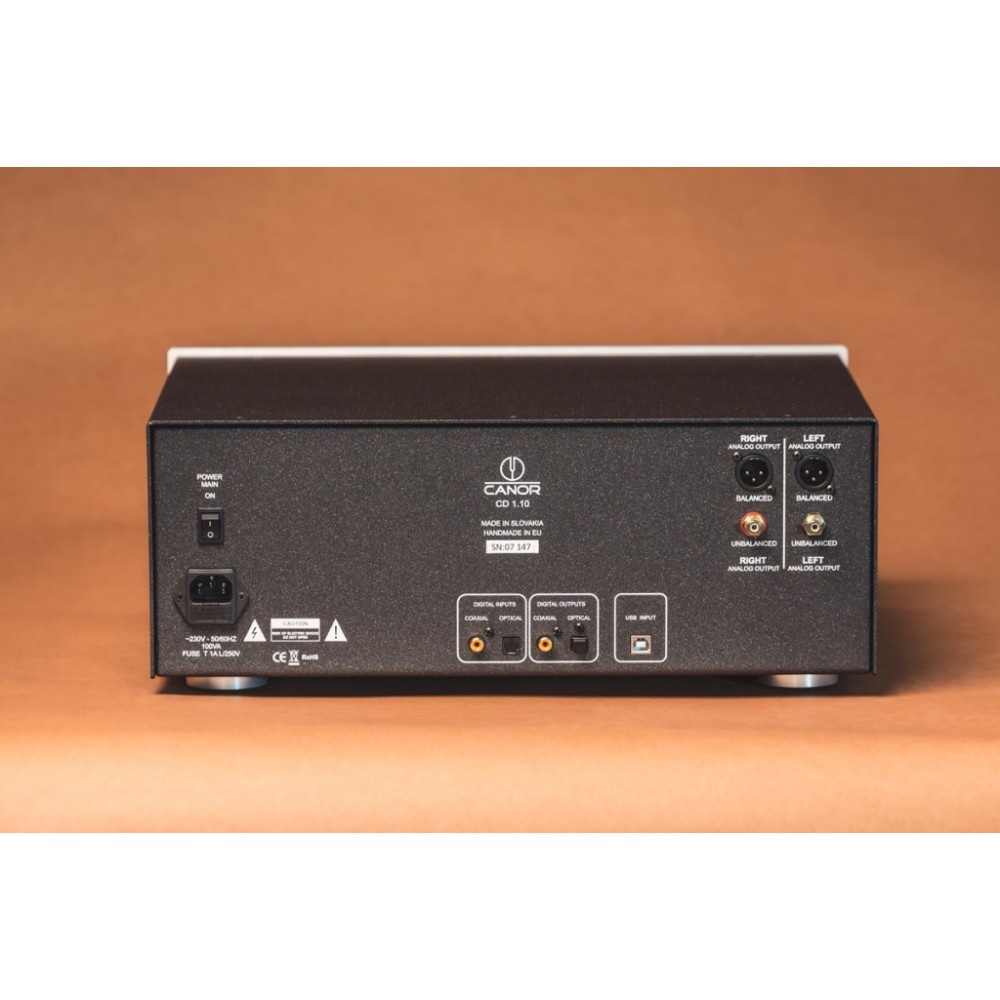

The digital output is optical and coaxial and in addition to the classic analog RCA, on the back you will also find a symmetrical XLR output.
Compared to the previous generation of CD players, countless improvements have been implemented in the circuits.
Super symmetrical passive filters have been implemented, optimized for maximum slope. Of course, the electron tubes, circumferentially improved from the previous generation of CDs, were retained as active elements.
The new circuitry has made it possible to achieve an even cleaner and more balanced waveform with both symmetrical and unbalanced output.
CD 1.10 is the first CANOR product to enable high quality XLR component interconnection.
All resources have been improved and optimized to minimize interference with each other. These adjustments of the power supply together with the new masterclock circuit enabled us to achieve even lower jitter values.
Digital outputs and mainly inputs: USB, coaxial and optical, working with Hi-res resolution of 24bit / 192Khz make CD 1.10 a high quality DA converter.
The converter also provides high quality DSD playback 2.8MHz and 5.6MHz as well as 3.07MHz and 6.14MHz.
Last but not least, the design and ergonomics of the new CD have been improved. The central control has been placed in a precision bearing and with this element connected to the Apls encoder, making it easy and direct to operate the most basic and most used commands of the entire CD player.
Our unique CMT ™ technology (CANOR ® PCB Milling Technology) was used in the production of printed circuit boards, more info: CMT ™
The solid aluminum front panel is available in black and silver. The package also includes a stylish remote control.
Technical specification
Frequency range |
(20 - 20,000) Hz ± 0.8dB |
Analog. output. impedance |
<200 Ω |
Harmonic distortion |
<0.005% / 1kHz |
Noise ratio |
> 102dB (20Hz - 20kHz) |
outputs |
RCA / XLR |
Analog. output. RCA / XLR voltage |
2.5V RMS / 5V RMS |
Digital inputs |
USB, Optical and Coxial |
Digital outputs |
Optical and Coxial |
voltage |
230V / 50Hz / 100VA |
Dimensions (WxHxD) |
435 x 170 x 420mm |
mass |
15 kg |
